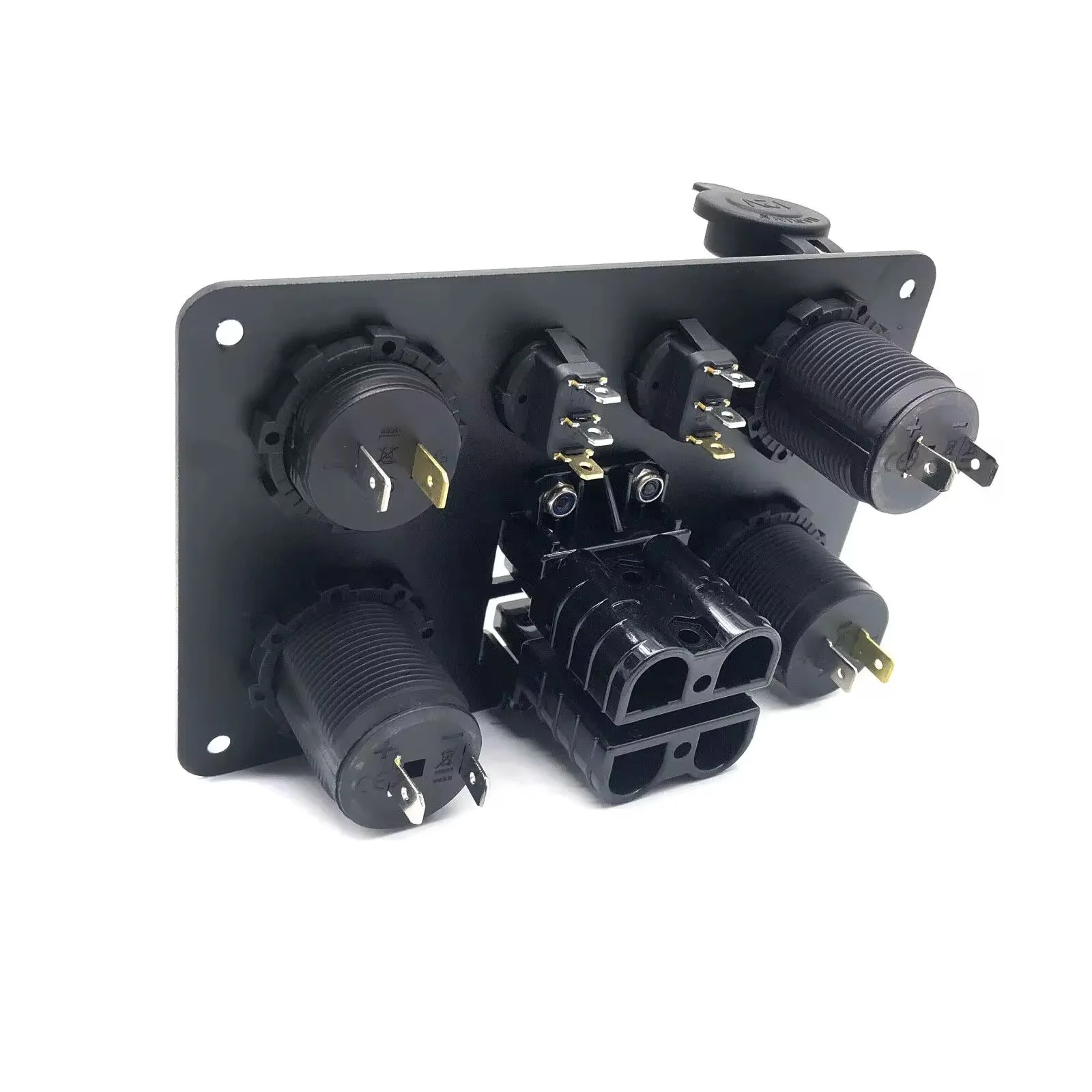

Upgrade your power management setup with this heavy-duty 12V / 24V switch panel, designed for 4WDs, caravans, campers, boats, trailers, and marine applications. Built tough with a high-quality aluminium panel, this all-in-one control board keeps your accessories powered, protected, and organised.



Featuring 2 LED rocker switches, dual USB 3.0 charging ports, a digital voltmeter, dual cigarette lighter sockets, and a 50A Anderson plug, this panel is perfect for off-road, touring, and camping setups.



Key Features



• 12V / 24V Compatibility
  Suitable for most vehicles including cars, 4WDs, caravans, campers, boats, buses, and trailers.
• 2 Blue LED Rocker Switches
  Water-resistant enclosed rocker switches with clear LED indicators for easy night use.
• Dual USB 3.0 Fast Charging Ports (QC 3.0)
  Equipped with an official Qualcomm smart chip, intelligently detects devices and delivers optimal charging.
  • Max single output: 18W
  • Charges compatible devices up to 4x faster than standard USB ports.
• Double 50A Grey Anderson Plug Socket
  Ideal for high-current accessories such as fridges, compressors, or auxiliary power systems.
• Digital LED Voltmeter
  Real-time voltage monitoring with no-glare LED display to keep an eye on your battery health.
• Dual Cigarette Lighter Sockets
  Power multiple accessories at once with ease.



Built Tough for Harsh Conditions



• IP65 Waterproof Rating
  Features waterproof caps, rubber sealing rings, and gaskets to protect against water, dust, and mud.
• High-Quality Aluminium Panel
  Scratch-proof, corrosion-resistant, and built to last in tough off-road and marine environments.
• Wide Operating Temperature Range
  Works reliably from -25°C to 85°C, making it suitable for extreme Australian conditions.



Specifications



• Panel Material: High-quality aluminium
• Panel Size: 160 x 99mm (W x H)
• Voltage: 12V / 24V
• Switching System:
  • 2 × Blue LED water-resistant enclosed rocker switches
• Switch Rating:
  • DC 12V 20A / 24V 10A
• USB Output:
  • Dual USB 3.0 QC 3.0 (5V)
• Anderson Plug:
  • Double 50A rated grey Anderson socket
• Operating Temperature:
  • -25°C to 85°C
• Electrical Life:
  • 10,000 on/off cycles at full load



IMPORTANT NOTE



• This switch panel comes pre-wired (excluding the Anderson plug).
• Wires are not designed to be removed.
• Any damage caused by dismantling switches or pulling out wires will not be covered by warranty.
